Pointcare M4 Fully Automated Dry Chemistry Analyzer
The MNCHIP Pointcare series is a fully automated dry chemistry analyzer built on microfluidics, used in healthcare facilities worldwide.
After adding anticoagulated whole blood, the system automatically completes plasma separation, metering, transport, mixing, reaction, and result reporting in about 12 minutes.
Operation is simple and quick to learn, with a built-in intelligent QC system to help ensure reliable results.
4.3-inch capacitive touchscreen
A 4.3-inch color capacitive display enables easy tap operation and a smoother user experience.
Compact footprint
Highly integrated to save space, lightweight and portable for testing wherever you need it.
Fast turnaround
In about 12 minutes from whole-blood sampling to results, you get broad, accurate reporting with less waiting and a better patient experience.
Built-in QC
An intelligent QC system runs self-checks at startup and monitors the instrument, reagents, and sample during each run to support reliable results.
Reliable results
Strong agreement versus multiple large imported chemistry systems, supporting confident clinical decisions.
Three simple steps: from anticoagulated whole blood to results in about 12 minutes

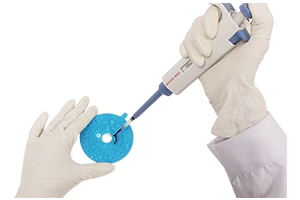

Add sample & diluent
100 μL anticoagulated whole blood, plasma, or serum & 430 μL diluent

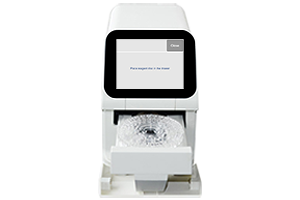

Load the disk
Fully automated workflow; the system auto-calibrates before each run

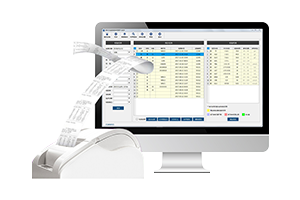

Results output
Print via optional thermal printer, office printer, or the PC management platform connected to the analyzer
Pointcare M4 reagent panels
MNCHIP disks are single-use, individually packaged panels covering up to 36 chemistry and electrolyte parameters. One 100 μL whole-blood sample can yield up to 19 reported results.
Panel I lyophilized reagent disk (microfluidic dry chemistry)
Measured parameters (13):
Total protein (TP), albumin (ALB), alanine aminotransferase (ALT), aspartate aminotransferase (AST), total bilirubin (TBIL), direct bilirubin (DBIL), uric acid (UA), creatinine (CRE),
urea (UREA), glucose (GLU), triglycerides (TG), total cholesterol (CHOL), HDL cholesterol (HDL-C),
Calculated parameters (4):
Globulin *GLO*, albumin/globulin ratio *A/G*, indirect bilirubin *IBIL*, LDL cholesterol *LDL-C*
NMPA (Tianjin) Reg. No. 20182400114
Panel II lyophilized reagent disk (microfluidic dry chemistry)
Measured parameters (8):
Creatinine (CRE), urea (UREA), amylase (AMY), glucose (GLU), potassium (K+), sodium (Na+), chloride (Cl-), carbon dioxide (CO2)
NMPA (Tianjin) Reg. No. 20182400115
Panel IV lyophilized reagent disk (microfluidic dry chemistry)
Measured parameters (15):
Total protein (TP), albumin (ALB), alanine aminotransferase (ALT), aspartate aminotransferase (AST), γ-glutamyl transferase (GGT), alkaline phosphatase (ALP), total bilirubin (TBIL),
direct bilirubin (DBIL), uric acid (UA), creatinine (CRE), urea (UREA), glucose (GLU), triglycerides (TG), total cholesterol (CHOL), HDL cholesterol (HDL-C)
Calculated parameters (4):
Globulin *GLO*, albumin/globulin ratio *A/G*, indirect bilirubin *IBIL*, LDL cholesterol *LDL-C*
NMPA (Tianjin) Reg. No. 20212400088
Stat / emergency lyophilized reagent disk (microfluidic dry chemistry)
Measured parameters (13):
Aspartate aminotransferase (AST), uric acid (UA), creatinine (CRE), creatine kinase (CK), CK-MB, lactate dehydrogenase (LDH), α-hydroxybutyrate dehydrogenase (α-HBDH),
amylase (AMY), glucose (GLU), potassium (K+), sodium (Na+), chloride (Cl-), carbon dioxide (CO2)
NMPA (Tianjin) Reg. No. 20182400117
Renal function lyophilized reagent disk (microfluidic dry chemistry)
Measured parameters (7):
Albumin (ALB), uric acid (UA), creatinine (CRE), urea (UREA), calcium (Ca2+), inorganic phosphorus (P), carbon dioxide (CO2)
NMPA (Tianjin) Reg. No. 20182400120
Liver function lyophilized reagent disk (microfluidic dry chemistry)
Measured parameters (10):
Total protein (TP), albumin (ALB), alanine aminotransferase (ALT), aspartate aminotransferase (AST), γ-glutamyl transferase (GGT), alkaline phosphatase (ALP),
total bilirubin (TBIL), direct bilirubin (DBIL), cholinesterase (CHE), total bile acid (TBA)
Calculated parameters (3):
Globulin *GLO*, albumin/globulin ratio *A/G*, indirect bilirubin *IBIL*
NMPA (Tianjin) Reg. No. 20222400210
Cardiac enzyme lyophilized reagent disk (microfluidic dry chemistry)
Measured parameters (5):
Aspartate aminotransferase (AST), creatine kinase (CK), CK-MB, lactate dehydrogenase (LDH), α-hydroxybutyrate dehydrogenase (α-HBDH)
NMPA (Tianjin) Reg. No. 20182400118
Electrolyte lyophilized reagent disk (microfluidic dry chemistry)
Measured parameters (7):
Potassium (K+), sodium (Na+), chloride (Cl-), calcium (Ca2+), inorganic phosphorus (P), magnesium (Mg2+), carbon dioxide (CO2)
NMPA (Tianjin) Reg. No. 20182400116
Glucose, lipids & homocysteine lyophilized reagent disk (microfluidic dry chemistry)
Measured parameters (5):
Glucose (GLU), triglycerides (TG), cholesterol (CHOL), HDL cholesterol (HDL-C), homocysteine (HCY)
Calculated parameters (1):
LDL cholesterol *LDL-C*
NMPA (Tianjin) Reg. No. 20192400027
Glucose & lipid lyophilized reagent disk (microfluidic dry chemistry)
Measured parameters (5):
Glucose (GLU), glycated serum protein (GSP), triglycerides (TG), cholesterol (CHOL), HDL cholesterol (HDL-C)
Calculated parameters (1):
LDL cholesterol *LDL-C*
NMPA (Tianjin) Reg. No. 20182400119
Blood ammonia lyophilized reagent disk (microfluidic dry chemistry)
Measured parameters (1):
Blood ammonia (NH3)
NMPA (Tianjin) Reg. No. 20202400125
* Calculated parameters
1 test per disk, 10 tests per box
Technical specifications
Dimensions & weight
210 mm (L) × 125 mm (W) × 175 mm (H) & 2.5 kg
Power supply
AC 100 V–240 V, 50–60 Hz
Operating temperature
10℃-30℃
Operating humidity
40%-85%
Temperature control
37℃±0.2℃
Test menu
Multiplex testing from one sample: 11 disk types, 36 parameters
Connectivity
Wi-Fi, cellular, USB 2.0, Ethernet; LIS capable
* Contraindications and precautions: see instructions for use
